可以與標準的DIN NG06，CETOP03和NFPA D03兼容。由于3/2路設計，端口A是**以P連接或在水箱排出。該中立的立場(電磁閥未**)通過復位彈簧自動拍攝。這個位置一直保持到電磁線圈通電。閥體具有全鋼結構設計，重要的內部功能零件硬化，閥芯和閥座耐磨。閥門的提升包括**桿和電樞，當電磁位于加壓油室的連接閥門時，提升設計就不會有微分區(qū)軸向操作方向(開啟,關閉)。因此,即使在壓力下，它的靜態(tài)壓力平衡可以使閥門在兩個流動方向下切換。

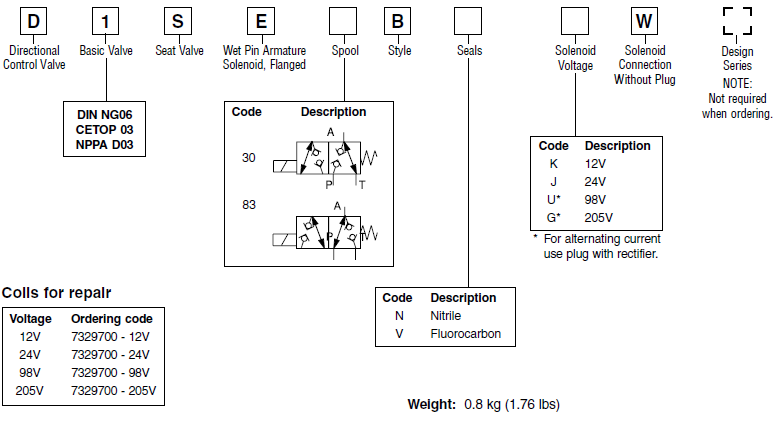

　　產品選型：

　　PARKER換向閥D1SE系列相關型號：

PV140L1L1B4NFWS4310	PGP511A0140CR 1D3NL2L1B1B1Z	PGP511A0060CC 1H2ND5D3B1B1	PGP511A0110CK1 H5VD5D4B1B1Z
PGP11A0100CL1H2ND5D4B1B1Z	PGP511A0140CA 1H3ND6D5B1B1-SPL	PGP511A0110CK 1H2NC8C7B1B1Z	PGP511A0110CK1 H2ND6D5B1B1
PCD00A-400	PGP511A0140CA1H2ND6D5B1B1	PGP511A0110C A1H2ND5D4B1B1	PAVC100BR4A22
PAVC65R4213	PGP511A0140AC1H3ND6D5B1B1-SPL	PGP511A0100CK 1H2ND5D4B1B1-H	PAVC100BL4A22
PAVC100R4222	PAVC100BR4C22	PAVC100BR4AP22	PAVC100BL45A22
PGP511A0230AC1NB1B1D5D4	PGP511A0140CK 1H2NC8C7B1B1Z	PV063R1K1T1NMMC	PAVC100B2R46A4A22
PGP511A0230AA1H2VD6D5B1B1-H	PGP511A0140CA 1H3ND6D5RDXH-SPL	PV040R1K1T1NMMC	PAVC100B2R45A22
PGP511A0220CK1H2ND6D4B1B1Z	PGP511A0100CK1H2NC8C7B1B1Z	PV032R1K1T1NMMC	PAVC100B2R456A422
PGP511A0190CK1H2NC8C7B1B1Z	PGP511A0090C S2H2ND4B1B1D3Z	PGP511A0230CK1H2NC8C7B1B1Z	PAVC100BR4222
PGP511A0160CS2D3WD5D4B1B1-SPL	PGP511A0070CL1H2ND5D4B1B1Z	PAVC100BR4M22	PAVC100BR422
PGP511A0160CK1H2NC8C7B1B1Z	PGP511A0070AA1H2ND5D4B1B1-SPL	PAVC100BR4H22	PAVC100BR22
